Overview

This Custom Data Mart is the foundational "Backend" project for my portfolio. By moving the logic into Azure Functions and a Kimball-based Star Schema, I have built a scalable, professional data warehouse that supports high-level BI and reporting.

Its core function was to create a centralized Azure SQL Data Warehouse utilizing Kimball Dimensional Modeling to consolidate fragmented API data from Takealot, Amazon, and MintSoft into a high-performance analytical source.

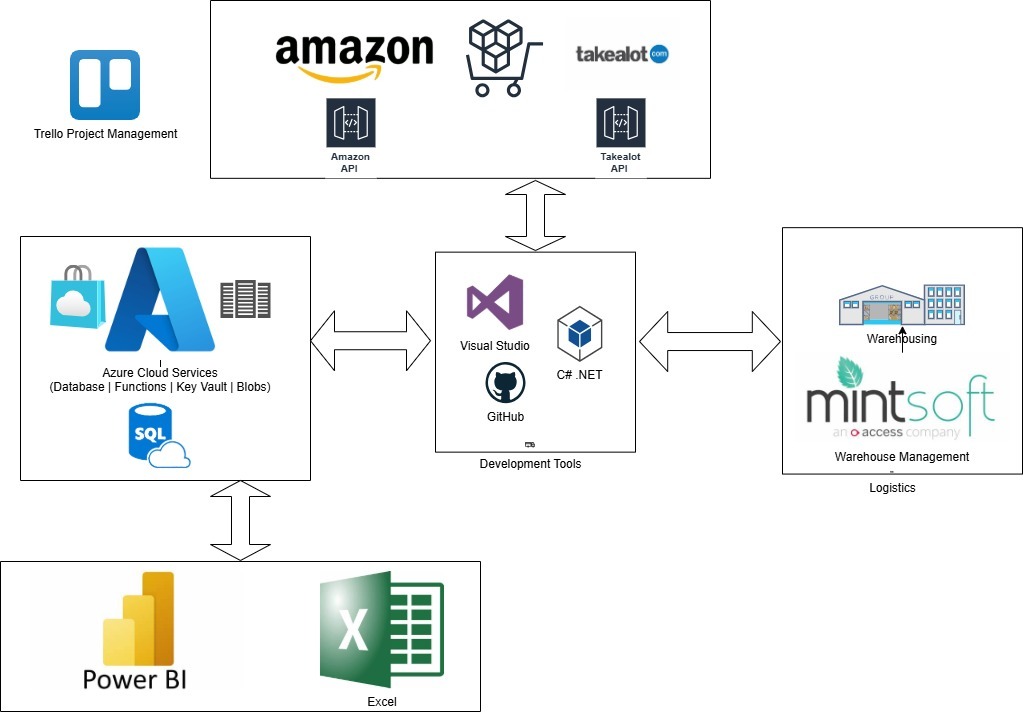

Technical Architecture

Dimensional Modeling (The Kimball Approach)

I designed a Star Schema to optimize query performance and ensure data integrity across multiple marketplaces.

  • The Model: The architecture consists of three core Fact Tables (Sales, Inventory, Warehouse) linked to shared Dimension Tables (dimProduct, dimCalendar, dimMarketplace).
  • SCD Implementation (Type 2): To track historical changes (such as price fluctuations or product re-naming), I implemented Slowly Changing Dimensions (SCD). Using IsCurrent flags and LoadDateTime timestamps, the model can reconstruct the state of the business at any historical point.
  • The "Golden Record" Challenge: I solved the cross-platform SKU mismatch problem by establishing dimProduct as the master reference. The C# ETL service performs a lookup on the unique SKU during ingestion, mapping disparate marketplace identifiers to a single internal ProductID.

C# ETL Orchestration (Azure Functions)

The extraction logic is built as a suite of Serverless Azure Functions, ensuring high availability and cost-effective compute.

  • High-Performance Extraction: I developed custom C# clients using HttpClient and System.Text.Json to consume REST APIs. The functions are triggered by TimerTriggers (executing daily) but support ad-hoc execution via HTTP triggers.
  • The "Upsert" Strategy: To maintain data cleanliness, the pipeline uses a "Check-then-Insert" logic. For example: When ingesting Takalot Sales, the code queries the database to see if a sale status has changed before committing a new record, preventing duplicate entries while capturing status updates.

Enterprise-Grade Security & Monitoring

  • Secrets Management: I integrated Azure Key Vault to store sensitive API keys and SQL connection strings. The C# functions retrieve these at runtime using SecretClient, ensuring no credentials are ever hardcoded in the source control.
  • Observability: I developed a dual-layer monitoring system:
    1. Custom Metadata Logging: A dedicated FunctionLogger table tracks every run, recording FunctionRunGuid, record counts, and execution duration.
    2. Automated Reporting: The reporting module aggregates daily logs into a professional HTML status report sent via SMTP, providing an immediate overview of data health.

Business Impact & Value

  • Historical Persistence: Unlike marketplace portals that often limit history, this Data Mart builds a permanent historical record of inventory and sales trends.
  • System Agility: Created a Decoupled Architecture. The Power BI reports point to the SQL views rather than the APIs; if a marketplace changes its API structure, only the C# "wrapper" needs an update, leaving the analytical layer untouched.
  • Scalability: The Azure SQL backend is designed to handle millions of rows, allowing the business to expand into new marketplaces (e.g., Makro, Loot) by simply adding a new Function module to the existing schema.

Portfolio Perspective

This project represents the transition from 'Business Intelligence' to 'Data Engineering.' By building a custom Azure backbone, I solved the most common problem in eCommerce: fragmented data. I successfully implemented enterprise patterns, Kimball modeling, serverless compute, and secure secret management. to create a robust data engine that powers analytics and decision making for the entire business.


Appendix:

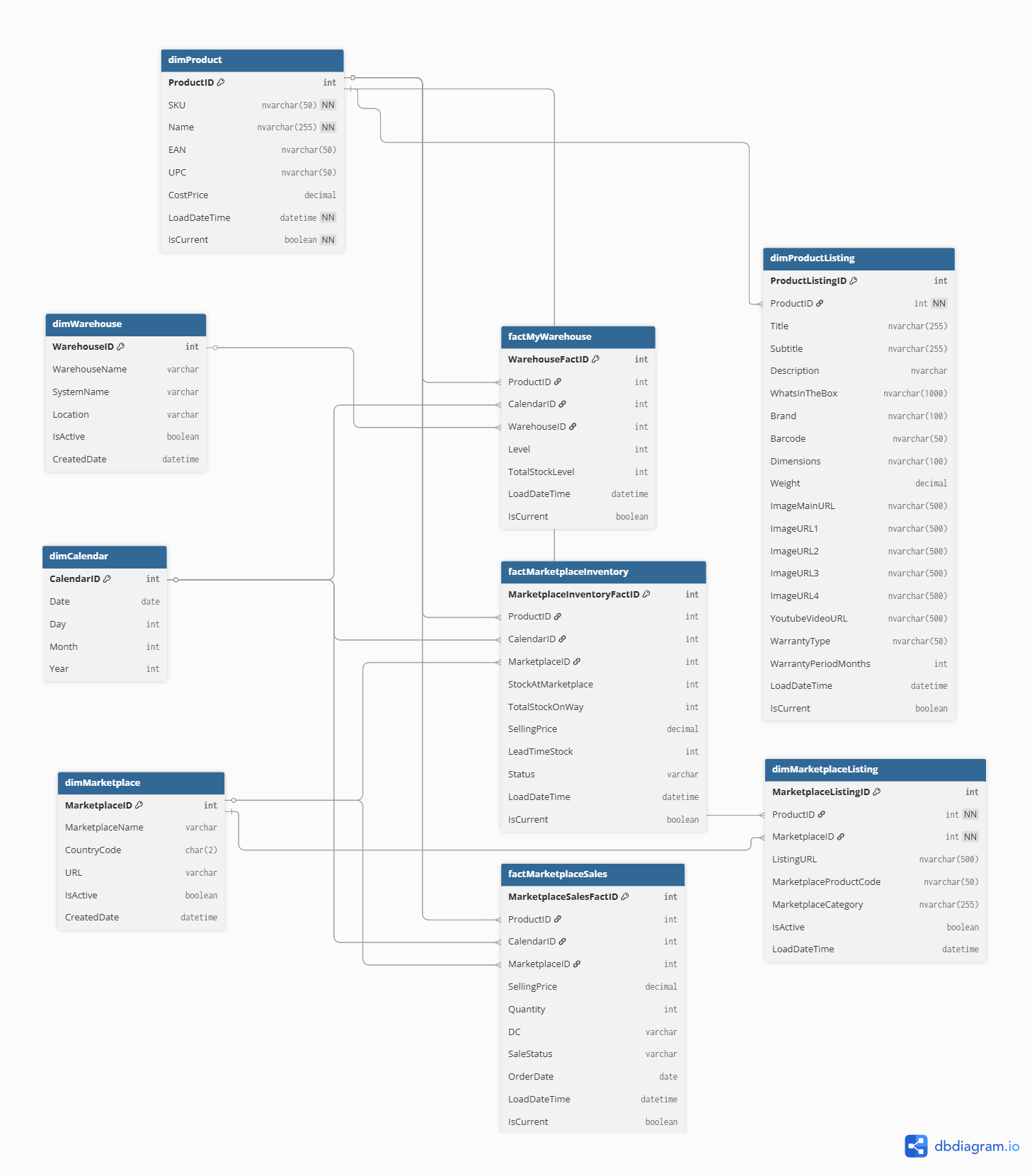

Database Design & Diagram

Kimball Facts and Dimensions
